FEATURES:

• Safe: No danger of loose wires or brittle tape, transparent and visible.

• Convenient: With test holes, no need to remove the tape to measure voltage.

• Fast: Directly plug in, plug out if wrongly connected, then reconnect again.

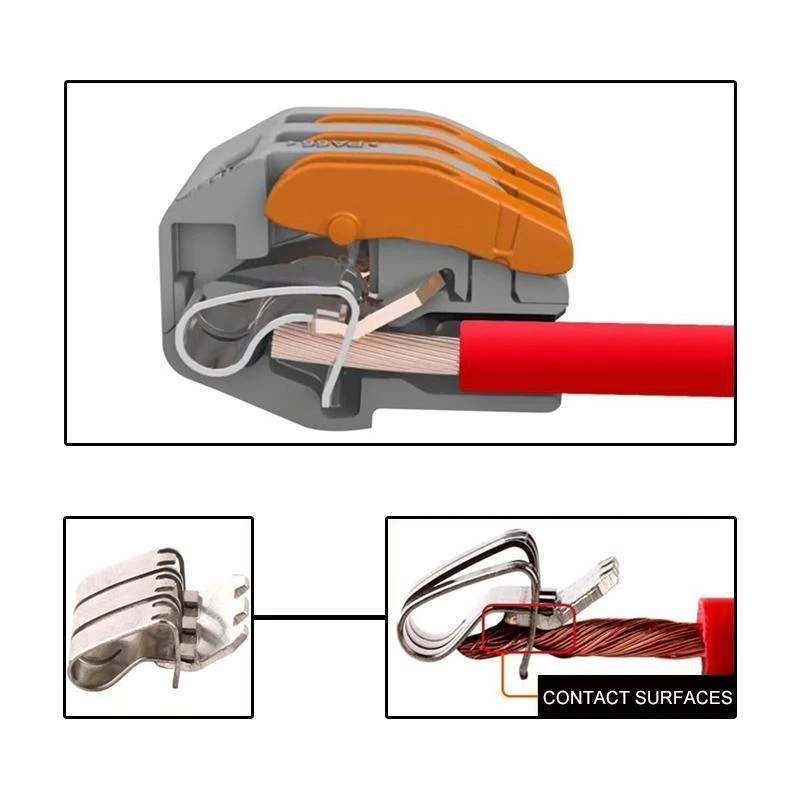

• Reliable: Each contact is independent of the shrapnel, and different wire diameters are also available, which can be safely shorted.

• PA 6.6 material, permanent temperature resistance of 105 ℃, no embrittlement.

• It can connect up to 4 mm / 32 A / 400 V.

SPECIFICATIONS:

• Number of Channels: 3-digit / 5-digit / 8-digit

• Rated Voltage: 250 V

• Rated Current: 20 A

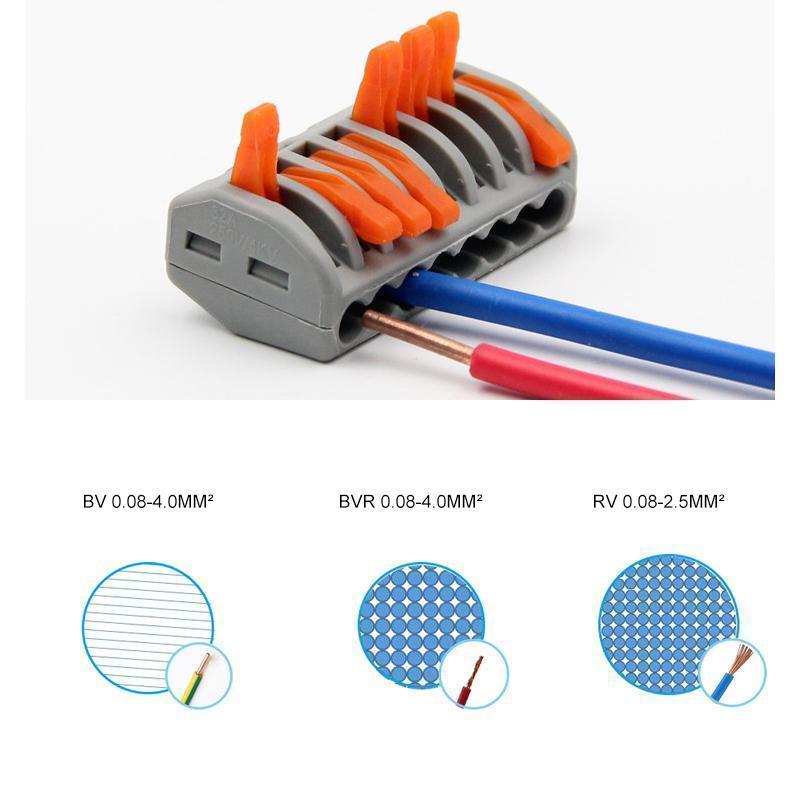

• Cross Section Range of Connectable Wire: 0.75-2.5 mm²

• Available Wire Cross Section Range: 18-12 AWG

• Color: Gray

• Wiring Method: Plug-in

• Wiring Direction: Front

• Pollution Degree: 2

• Withstands Instantaneous Peak Voltage: 4 KV

• Insulation Material: PA

• Flame Retardant Rating: UL94 V-0 or V-2

• Stripping Length: 12-13 mm

• Stripping Length Range: 0.47 in

WIRING METHOD:

1. Stripped single core and stranded wire insulation 9 - 11 mm.

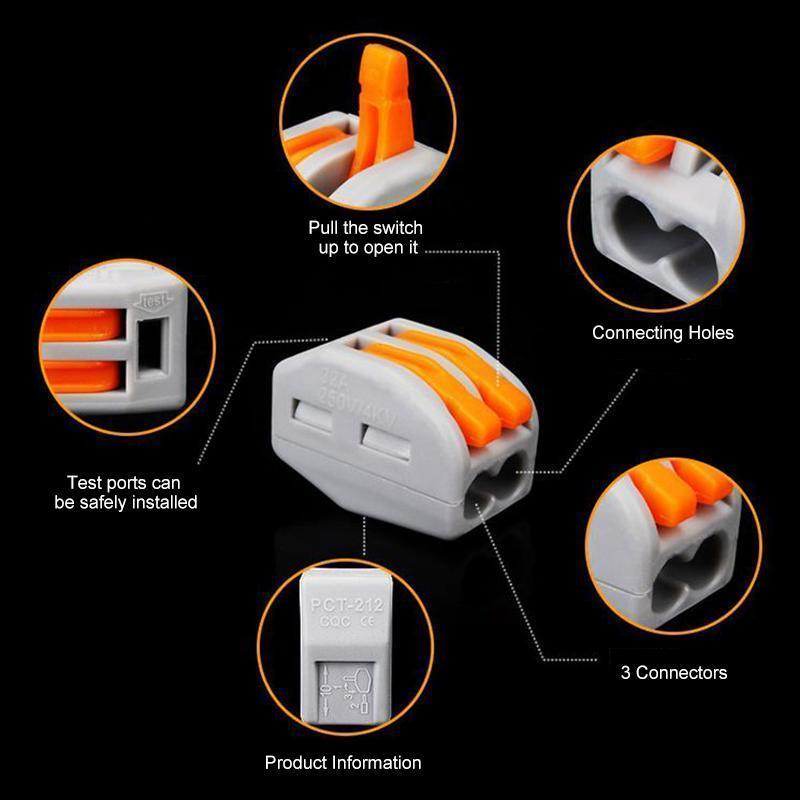

2. Move the orange lever up with your thumb and open the spring.

3. Pass the wire through the spring opening.

4. When the orange pressure bar is pressed, the wire is automatically clamped.

WIRE REMOVAL METHOD:

• After pushing the orange bar up with your thumb, you can remove the wire.

NOTES:

• Please allow slight measurement deviations due to manual measurements.

• Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed in the pictures.

PACKAGE INCLUDED:

• 10 PCS Universal Wire Connector Terminal Block
